Summary

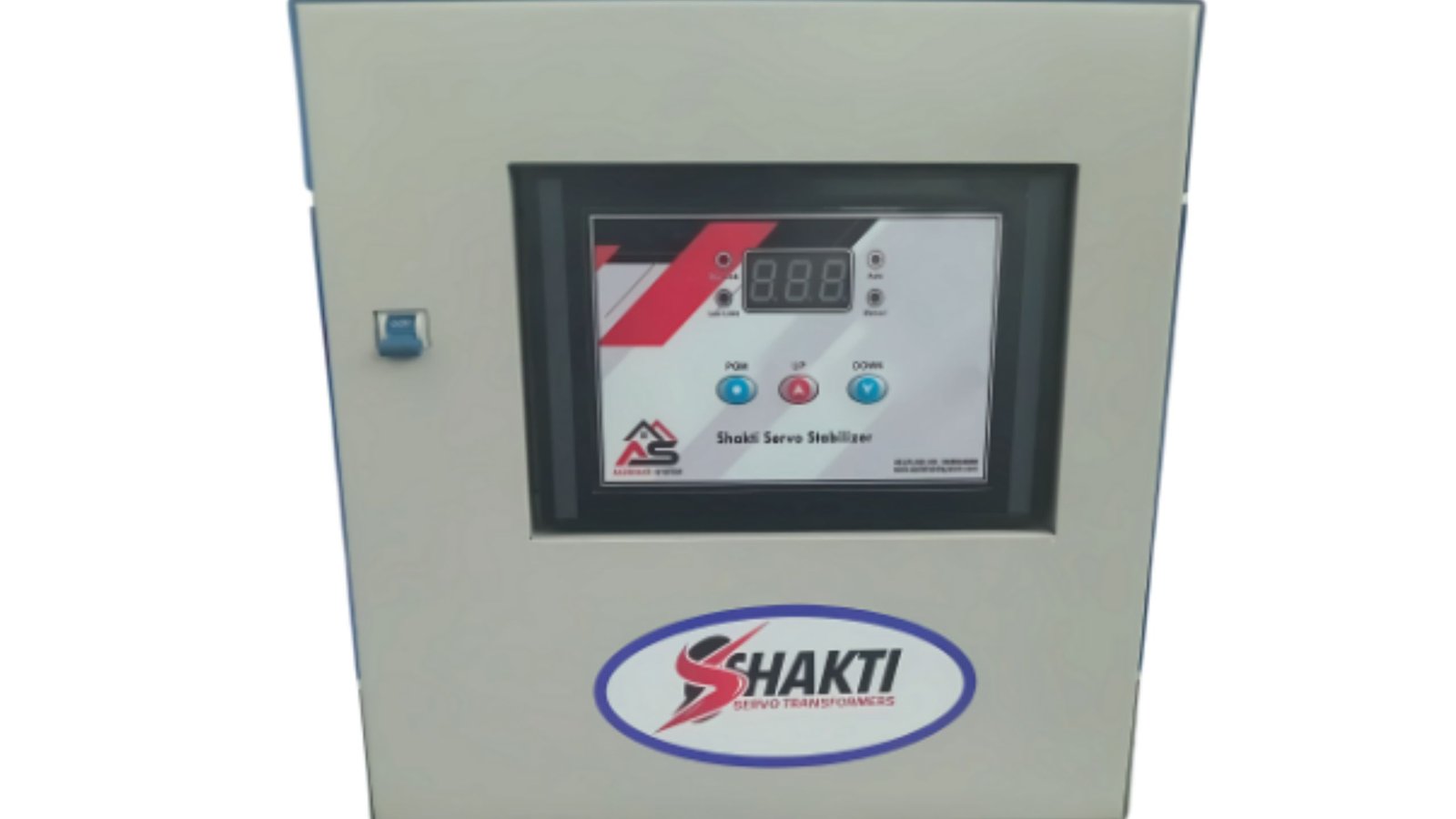

A 7.5 kVA single-phase servo stabilizer is a precision voltage regulation device used to protect sensitive electrical equipment from voltage fluctuations. It is commonly used in homes, offices, clinics, laboratories, and small commercial setups where stable single-phase power is essential for safe and efficient operation.
What is a Servo Stabilizer 7.5 kVA Single Phase?
A 7.5 kVA stabilizer is an electromechanical voltage stabilizer designed to deliver accurate output voltage for loads up to 7.5 kVA.
It uses a servo motor–controlled autotransformer to correct voltage variations automatically.
This stabilizer is suitable for single-phase power supply systems commonly found in residential and light commercial environments.
It is ideal for protecting equipment that requires consistent voltage to operate correctly.
How does a 7.5 kVA Single Phase Servo Stabilizer work?
A servo stabilizer works through continuous sensing and mechanical voltage correction.
- The stabilizer monitors incoming single-phase voltage in real time.
- A control circuit detects under-voltage or over-voltage conditions.
- A servo motor is activated when voltage deviates from the set range.
- The servo motor moves a carbon brush across the transformer winding.
- The output voltage is corrected and maintained within a tight tolerance range.
This process is automatic and continuous, ensuring stable power output at all times.
Why is a 7.5 kVA Single Phase Servo Stabilizer important?
- Single-phase power supply often experiences frequent voltage fluctuations.
- Sensitive equipment can malfunction or fail due to unstable voltage.
- Servo stabilizers provide higher accuracy than relay-type stabilizers.
- Stable voltage improves equipment efficiency and operating life.
- Power-related downtime and repair costs are reduced significantly.
For critical appliances, voltage regulation is a functional requirement, not an optional feature.
Applications of 7.5 kVA Single Phase Servo Stabilizer
- Air conditioners and HVAC units
- Medical and diagnostic equipment
- Office servers and workstations
- Laboratory instruments
- Printing and packaging machines
- CNC controllers and small industrial machines
This capacity range is suitable for medium-load single-phase applications.
Key facts and technical specifications
- Rated capacity: 7.5 kVA single phase
- Voltage accuracy: ±1% output regulation
- Typical input voltage range: 170V–270V (custom ranges available)
- Output voltage: 220V–230V AC
- Frequency: 50 Hz
- Cooling: Air-cooled
- Efficiency: Above 98%
- Protection features: overload, short circuit, thermal protection
These specifications make servo stabilizers reliable for continuous operation.
Common questions about Servo Stabilizer 7.5 kVA Single Phase
Q1. What load can a 7.5 kVA single-phase servo stabilizer handle?
Ans. It can support electrical loads up to 6 kW, depending on power factor and application type.
Q2. Is a servo stabilizer better than a relay stabilizer?
Ans. Yes. Servo stabilizers offer faster correction, higher accuracy, and longer lifespan.
Q3. Can this stabilizer run continuously?
Ans. Yes. It is designed for 24/7 continuous operation under rated conditions.
Q4. Does it protect against voltage spikes?
Ans. Yes. Servo stabilizers respond quickly to voltage changes and protect connected equipment.
Q5. Is customization possible?
Ans. Yes. Input voltage range and protection features can be customized based on site conditions.
TL;DR
- A 7.5 kVA single-phase servo stabilizer ensures precise voltage regulation.
- It uses a servo motor to correct voltage fluctuations automatically.
- Suitable for homes, offices, clinics, and small commercial units.
- Provides ±1% voltage accuracy and high efficiency.
- Protects equipment and extends operational lifespan.
Conclusion
A 7.5 kVA single-phase servo stabilizer is a dependable solution for environments where voltage stability is critical. Its precise regulation, high efficiency, and robust design make it suitable for protecting sensitive electrical equipment. By maintaining consistent voltage levels, this stabilizer helps reduce equipment failure, improve performance, and ensure long-term operational reliability in single-phase power systems.
